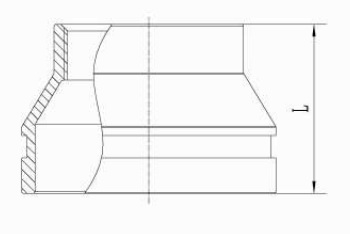

Nominal Size	Pipe OD.	Working  Pressure	Dimensions
mm/in	mm/in	psi/Mpa	Lmm/in
32×25	42.4×33.7	300Psi 2.07Mpa	64
1¼×1	1.660×1.315		2.51
40×32	48.3×42.4		64
1½×1¼	1.900×1.660		2.51
50×25	60.3×33.7		64
2×1	2.375×1.315		2.51
50×32	60.3×42.4		64
2×1¼	2.375×1.660		2.51
50×40	60.3×48.3		64
2×1½	2.375×1.900		2.51
65×25	73.0×33.7		64
2½×1	2.875×1.315		2.51
65×32	73.0×42.4		64
2½×1¼	2.875×1.660		2.51
65×40	73.0×48.3		64
2½×1½	2.875×1.900		2.51
65×50	73.0×60.3		64
2½×2	2.875×2.375		2.51
65×25	76.1×33.7		64
2½×1	3.000×1.315		2.51
65×32	76.1×42.4		64
2½×1¼	3.000×1.660		2.51
65×40	76.1×48.3		64
2½×1½	3.000×1.900		2.51
65×50	76.1×60.3		64
2½×2	3.000×2.375		2.51
80×25	88.9×33.7		64
3×1	3.500×1.315		2.51
80×32	88.9×42.4		64
3×1¼	3.500×1.660		2.51
80×40	88.9×48.3		64
3×1½	3.500×1.900		2.51
80×50	88.9×60.3		64
3×2	3.500×2.375		2.51
80×65	88.9×76.1		64
3×2½	3.500×3.000		2.51
100×25	108.0×33.7		76
4×1	4.250×1.315		2.99
100×32	108.0×42.4		76
4×1¼	4.250×1.660		2.99
100×40	108.0×48.3		76
4×1½	4.250×1.900		2.99
100×50	108.0×60.3		76
4×2	4.250×2.375		2.99
100×65	108.0×76.1		76
4×2½	4.250×3.000		2.99
100×80	108.0×88.9		76
4×3	4.250×3.500		2.99
100×25	114.3×33.7	300Psi 2.07Mpa	76
4×1	4.500×1.315		2.99
100×32	114.3×42.4		76
4×1¼	4.500×1.660		2.99
100×40	114.3×48.3		76
4×1½	4.500×1.900		2.99
100×50	114.3×60.3		76
4×2	4.500×2.375		2.99
100×65	114.3×76.1		76
4×2½	4.500×3.000		2.99
100×80	114.3×88.9		76
4×3	4.500×3.500		2.99
125×25	133.0×33.7		89
5×1	5.250×1.315		3.5
125×32	133.0×42.4		89
5×1¼	5.250×1.660		3.5
125×40	133.0×48.3		89
5×1½	5.250×1.900		3.5
125×50	133.0×60.3		89
5×2	5.250×2.375		3.5
125×25	139.7×33.7		89
5×1	5.500×1.315		3.5
125×32	139.7×42.4		89
5×1¼	5.500×1.660		3.5
125×40	139.7×48.3		89
5×1½	5.500×1.900		3.5
125×50	139.7×60.3		89
5×2	5.500×2.375		3.5
125×65	139.7×76.1		89
5×2½	5.500×3.000		3.5
125×80	139.7×88.9		89
5×3	5.500×3.500		3.5
125×100	139.7×114.3		89
5×4	5.500×4.500		3.5
125×25	141.3×33.7		89
5×1	5.563×1.315		3.5
125×32	141.3×42.4		89
5×1¼	5.563×1.660		3.5
125×40	141.3×48.3		89
5×1½	5.563×1.900		3.5
125×50	141.3×60.3		89
5×2	5.563×2.375		3.5
125×65	141.3×76.1		89
5×2½	5.563×3.000		3.5
125×80	141.3×88.9		89
5×3	5.563×3.500		3.5
150×25	159.0×33.7		102
6×1	6.250×1.315		4.01
150×32	159.0×42.4	300Psi 2.07Mpa	102
6×1¼	6.250×1.660		4.01
150×40	159.0×48.3		102
6×1½	6.250×1.900		4.01
150×50	159.0×60.3		102
6×2	6.250×2.375		4.01
150×65	159.0×76.1		102
6×2½	6.250×3.000		4.01
150×80	159.0×88.9		102
6×3	6.250×3.500		4.01
150×25	165.1×33.7		102
6×1	6.500×1.315		4.01
150×32	165.1×42.4		102
6×1¼	6.500×1.660		4.01
150×40	165.1×48.3		102
6×1½	6.500×1.900		4.01
150×50	165.1×60.3		102
6×2	6.500×2.375		4.01
150×65	165.1×76.1		102
6×2½	6.500×3.000		4.01
150×80	165.1×88.9		102
6×3	6.500×3.500		4.01
150×100	165.1×114.3		102
6×4	6.500×4.500		4.01
150×25	168.3×33.7		102
6×1	6.625×1.315		4.01
150×32	168.3×42.4		102
6×1¼	6.625×1.660		4.01
150×40	168.3×48.3		102
6×1½	6.625×1.900		4.01
150×50	168.3×60.3		102
6×2	6.625×2.375		4.01
200×25	219.1×33.7		127
8×1	8.625×1.315		5
200×32	219.1×42.4		127
8×1¼	8.625×1.660		5
200×40	219.1×48.3		127
8×1½	8.625×1.900		5
200×50	219.1×60.3		127
8×2	8.625×2.375		5
200×50	219.1×60.3		127
8×2	8.625×2.375		5
200×65	219.1×76.1		127
8×2½	8.625×3.000		5
200×80	219.1×88.9		127
8×3	8.625×3.500		5
200×100	219.1×114.3		127
8×4	8.625×4.500		5
