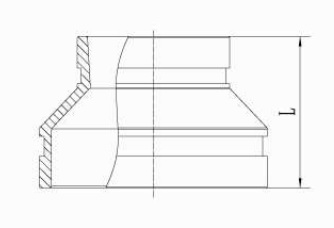

Nominal Size	Pipe OD.	Working  Pressure	Dimensions
mm/in	mm/in	psi/Mpa	Lmm/in
32×25	42.4×33.7	300Psi 2.07Mpa	64
1¼×1	1.660×1.315		2.51
40×25	48.3×33.7		64
1½×1	1.900×1.315		2.51
40×32	48.3×42.4		64
1½×1¼	1.900×1.660		2.51
50×25	60.3×33.7		64
2×1	2.375×1.315		2.51
50×32	60.3×42.4		64
2×1¼	2.375×1.660		2.51
50×40	60.3×48.3		64
2×1½	2.375×1.900		2.51
65×25	73.0×33.7		64
2½×1	2.875×1.315		2.51
65×32	73.0×42.4		64
2½×1¼	2.875×1.660		2.51
65×40	73.0×48.3		64
2½×1½	2.875×1.900		2.51
65×50	73.0×60.3		64
2½×2	2.875×2.375		2.51
65×32	76.1×42.4		64
2½×1¼	3.000×1.660		2.51
65×40	76.1×48.3		64
2½×1½	3.000×1.900		2.51
65×50	76.1×60.3		64
2½×2	3.000×2.375		2.51
80×32	88.9×42.4		64
3×1¼	3.500×1.660		2.51
80×40	88.9×48.3		64
3×1½	3.500×1.900		2.51
80×50	88.9×60.3		64
3×2	3.500×2.375		2.51
80×65	88.9×76.1		64
3×2½	3.500×3.000		2.51
100×65	108.0×76.1		76
4×2½	4.250×3.000		2.99
100×80	108.0×88.9		76
4×3	4.250×3.500		2.99
100×32	114.3×42.4		76
4×1¼	4.500×1.660		2.99
100×40	114.3×48.3	300Psi 2.07Mpa	76
4×1½	4.500×1.900		2.99
100×50	114.3×60.3		76
4×2	4.500×2.375		2.99
100×65	114.3×76.1		76
4×2½	4.500×3.000		2.99
100×80	114.3×88.9		76
4×3	4.500×3.500		2.99
125×50	139.7×60.3		89
5×2	5.500×2.375		3.5
125×65	139.7×76.1		89
5×2½	5.500×3.000		3.5
125×80	139.7×88.9		89
5×3	5.500×3.500		3.5
125×100	139.7×114.3		89
5×4	5.500×4.500		3.5
125×50	141.3×60.3		89
5×2	5.563×2.375		3.5
125×65	141.3×76.1		89
5×2½	5.563×3.000		3.5
125×80	141.3×88.9		89
5×3	5.563×3.500		3.5
125×100	141.3×114.3		89
5×2½	5.563×4.500		3.5
150×50	159.0×60.3		102
6×2	6.250×2.375		4.01
150×65	159.0×76.1		102
6×2½	6.250×3.000		4.01
150×80	159.0×88.9		102
6×3	6.250×3.500		4.01
150×100	159.0×108.0		102
6×4	6.250×4.250		4.01
150×100	159.0×114.3		102
6×4	6.250×4.500		4.01
150×125	159.0×133.0		102
6×5	6.250×5.250		4.01
150×125	159.0×139.7		102
6×5	6.250×5.500		4.01
150×50	165.1×60.3		102
6×2	6.500×2.375		4.01
150×65	165.1×76.1	300Psi 2.07Mpa	102
6×2½	6.500×3.000		4.01
150×80	165.1×88.9		102
6×3	6.500×3.500		4.01
150×100	165.1×114.3		102
6×4	6.500×4.500		4.01
150×125	165.1×139.7		102
6×5	6.500×5.500		4.01
150×50	168.3×60.3		102
6×2	6.625×2.375		4.01
150×65	168.3×76.1		102
6×2½	6.625×3.000		4.01
150×80	168.3×88.9		102
6×3	6.625×3.500		4.01
150×100	168.3×114.3		102
6×4	6.625×4.500		4.01
150×125	168.3×139.7		102
6×5	6.625×5.500		4.01
200×50	219.1×60.3		127
8×2	8.625×2.375		5
200×65	219.1×76.1		127
8×2½	8.625×3.000		5
200×80	219.1×88.9		127
8×3	8.625×3.500		5
200×100	219.1×108.0		127
8×4	8.625×4.250		5
200×100	219.1×114.3		127
8×4	8.625×4.500		5
200×125	219.1×139.7		127
8×5	8.625×5.500		5
200×150	219.1×159.0		127
8×6	8.625×6.250		5
200×150	219.1×165.1		127
8×6	8.625×6.500		5
200×150	219.1×168.3		127
8×6	8.625×6.625		5
