Name: |

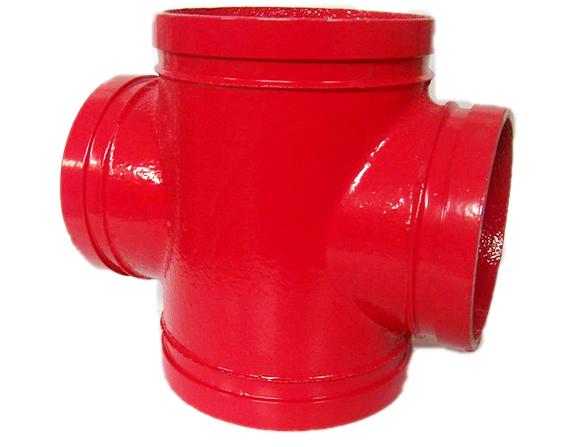

Grooved reducing cross |
Spec: |
|
|
|
|
|
|
Details |
|
Nominal Size |
Pipe OD. |
Working Pressure |
Dimensions |
Dimensions |
mm/in |
mm/in |
psi/Mpa |
L1mm/in |
L2mm/in |
100×50 |
114.3×60.3 |
300Psi 2.07Mpa |
127 |
127 |
4×2 |
4.500×2.375 |
5 |
5 |
100×65 |
114.3×76.1 |
127 |
127 |
4×2½ |
4.500×3.000 |
5 |
5 |
100×80 |
114.3×88.9 |
127 |
127 |
4×3 |
4.500×3.500 |
5 |
5 |
150×100 |
165.1×114.3 |
165 |
165 |
6×4 |
6.500×4.500 |
6.5 |
6.5 |
150×50 |
168.3×60.3 |
165 |
165 |
6×2 |
6.625×2.375 |
6.5 |
6.5 |
150×65 |
168.3×76.1 |
165 |
165 |
6×2½ |
6.625×3.000 |
6.5 |
6.5 |
150×80 |
168.3×88.9 |
165 |
165 |
6×3 |
6.625×3.500 |
6.5 |
6.5 |
150×100 |
168.3×114.3 |
165 |
165 |
6×4 |
6.625×4.500 |
6.5 |
6.5 |
|
|
|
|
