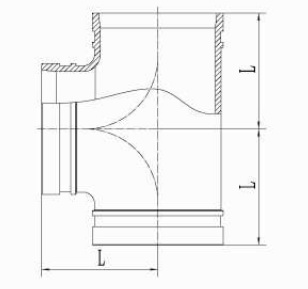

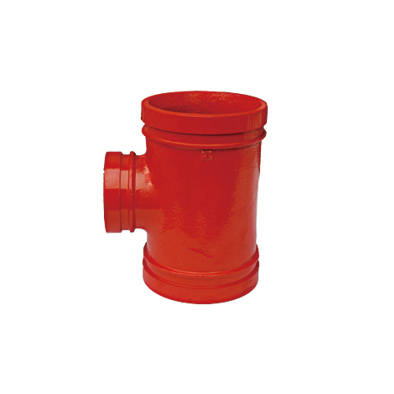

Tee(short)					Tee(long)
Nominal Size	Pipe OD.	Working  Pressure	Dimensions		Nominal Size	Pipe OD.	Working  Pressure	Dimensions
mm/in	mm/in	psi/Mpa	Lmm/in		mm/in	mm/in	psi/Mpa	Lmm/in
25	33.7	300Psi 2.07Mpa	57		25	33.7	300Psi 2.07Mpa	70
1	1.327		2.24		1	1.327		2.76
32	42.4		60		32	42.4		70
1¼	1.669		2.36		1¼	1.669		2.76
40	48.3		60		40	48.3		70
1½	1.9		2.36		1½	1.9		2.76
50	60.3		70		50	60.3		82
2	2.375		2.76		2	2.375		3.23
65	73		76		65	73		95
2½	2.875		2.99		2½	2.875		3.74
65	76.1		76		65	76.1		95
2½	3		2.99		2½	3		3.74
80	88.9		86		80	88.9		108
3	3.5		3.39		3	3.5		4.25
100	108		102		100	108		127
4	4.25		4.02		4	4.25		5
100	114.3		102		100	114.3		127
4	4.5		4.02		4	4.5		5
125	133		121		125	133		140
5	5.25		4.76		5	5.25		5.51
125	139.7		121		125	139.7		140
5	5.5		4.76		5	5.5		5.51
125	141.3		121		125	141.3		140
5	5.563		4.76		5	5.563		5.51
150	159		140		150	159		165
6	6.25		5.51		6	6.25		6.5
150	165.1		140		150	165.1		165
6	6.5		5.51		6	6.5		6.5
150	168.3		140		150	168.3		165
6	6.625		5.51		6	6.625		6.5
200	219.1		175		200	219.1		197
8	8.625		6.89		8	8.625		7.76
250	273		215		250	273		229
10	10.75		8.46		10	10.75		9.02
300	323.9		245		300	323.9		254
12	12.75		9.65		12	12.75		10
